Optonan

Industrial Machine Vision

Discover OPTONAN's cutting-edge machine vision and automation solutions designed to optimize production, enhance quality control, and reduce errors. We offer customized vision systems, industrial cameras, lighting, motion control, and more to revolutionize your industrial processes.

Download Brochure

About Us

Bringing Your Ideas and Innovations to Life

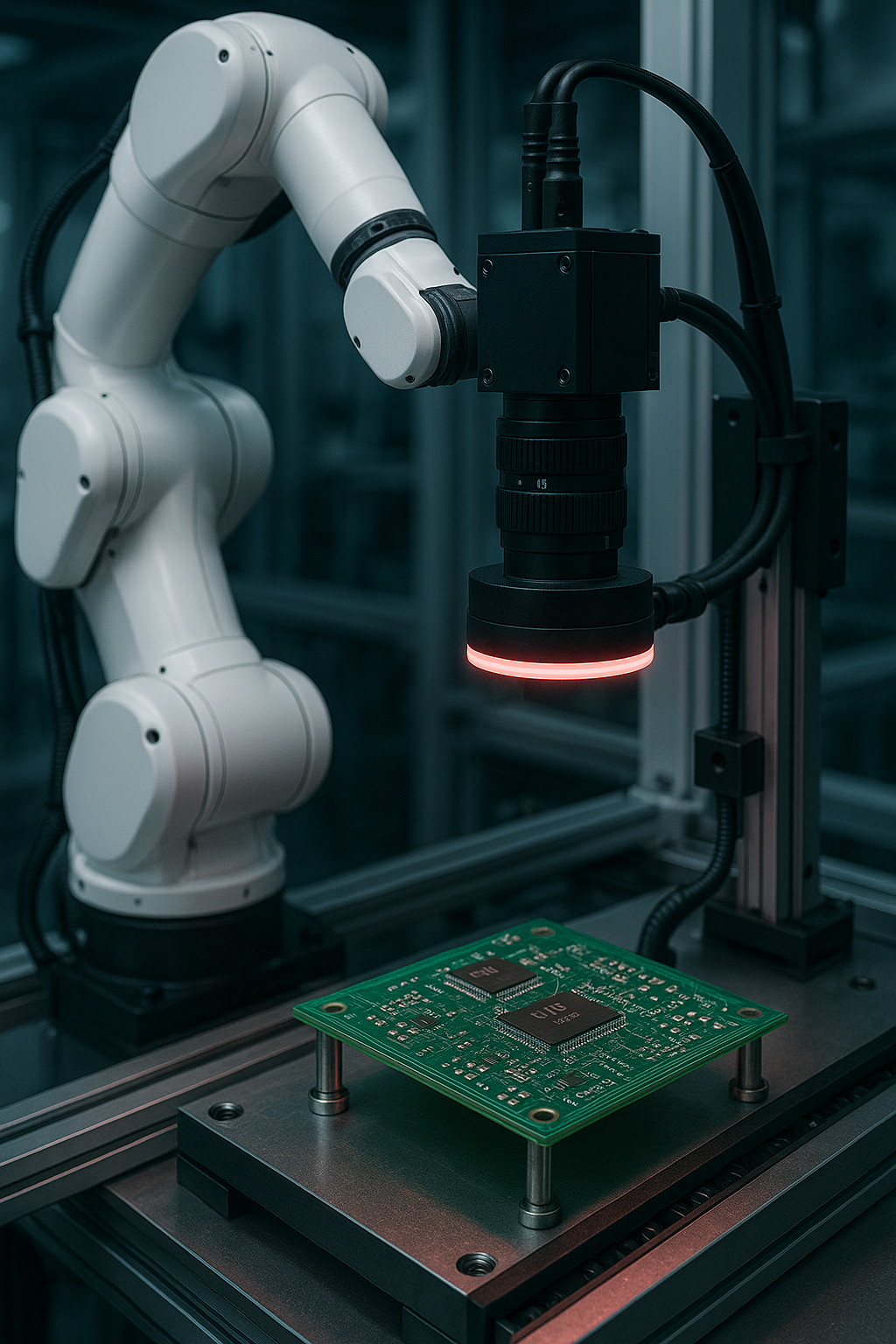

At OPTONAN, we are at the forefront of the industrial machine vision revolution. Our company specializes in providing cutting-edge visual inspection solutions that integrate seamlessly into your existing manufacturing and production processes.

With a history rooted in innovation and a future focused on technological advancement, we are dedicated to delivering systems that exceed the highest standards of accuracy and reliability.

5+
Years experience in Industry
50+
Projects Delivered

Industrial Macine Vision

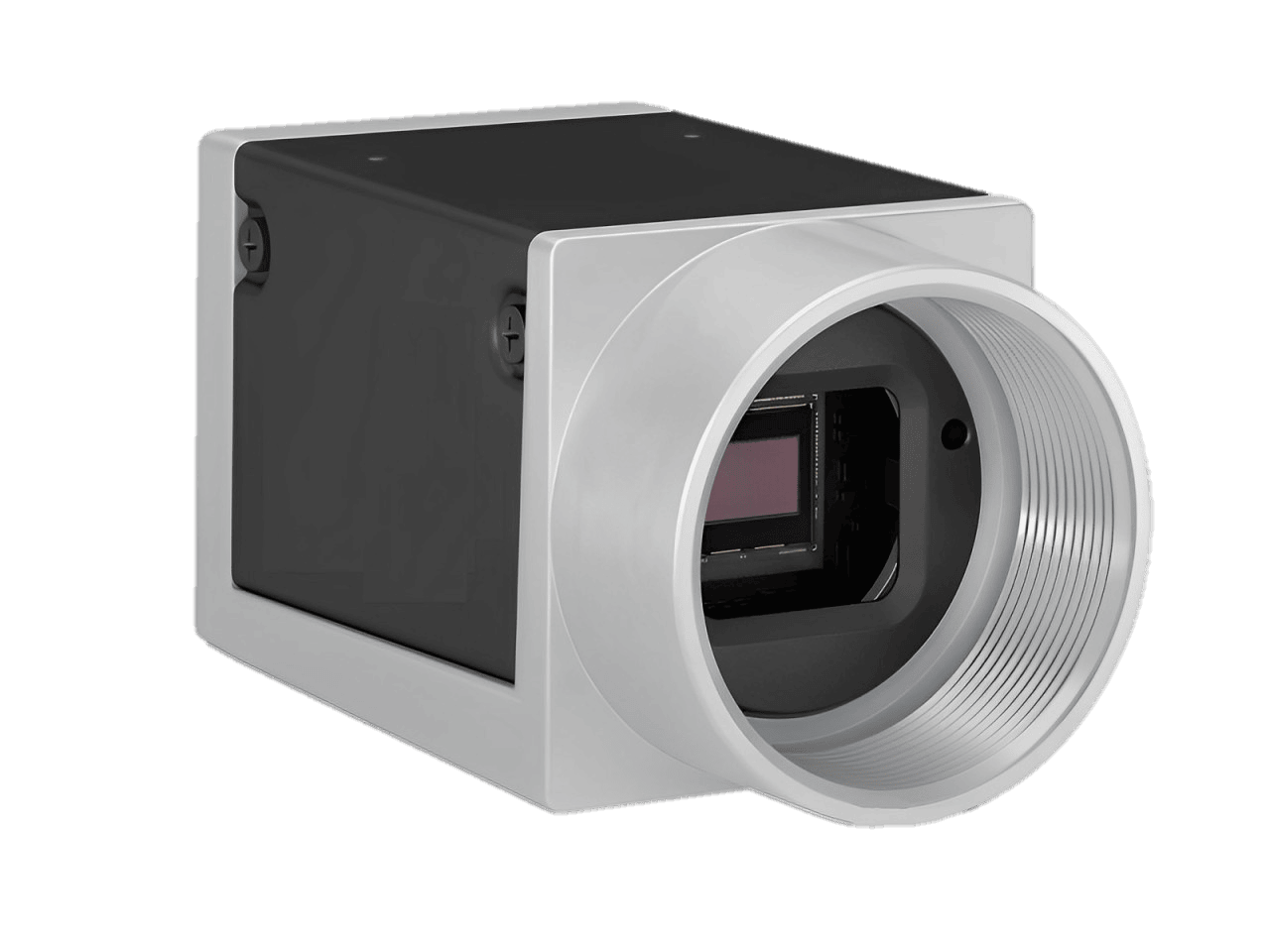

GigE Cameras

High-speed industrial cameras providing crystal-clear images for accurate inspections.

Supports exposure time and white balance settings
Software trigger, external I/O trigger and continuous capture
64 MB image cache memory
User-defined ROI and mirror output

Interface	10/ 100/ 1,000 Mbps Ethernet, compliant with GigE Vision 2.0 standard
Trigger	Software, external input (via the I/O connector)
Power Supply	DC 12~24V or PoE (IEEE 802.3af)
Temperature	Storage: -20~85°C, Operating:0~45°C
Certification	CE, KC, UL, RoHS, IP30
OS	Windows 10 x86/ x64, Ubuntu 16.04 or above

Industrial Macine Vision

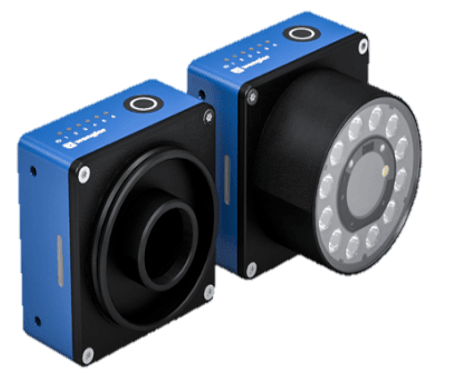

Smart Cameras

Our smart cameras are equipped with high-resolution sensors and powerful image processing capabilities, enabling precise inspection, measurement, and identification tasks.

Whether it's quality control in manufacturing, or automation in logistics, our smart cameras deliver exceptional performance and reliability.

Their highly modular hardware platforms, combined with high-performance Machine Vision software, allow for customized adjustments to suit all Machine Vision applications.

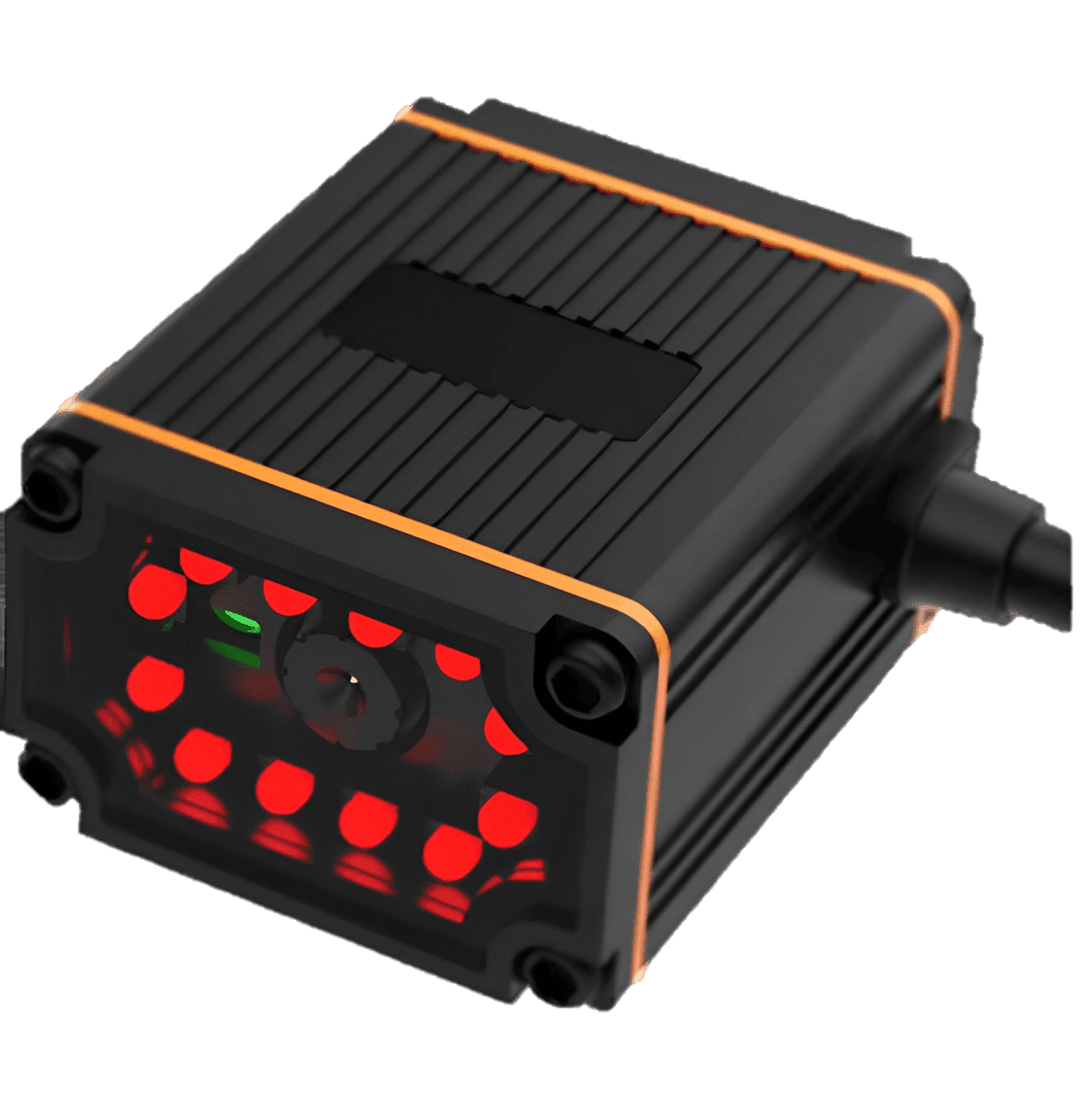

Code Readers

Our code scanners are engineered to read and decode various types of barcodes and QR codes with lightning speed and accuracy.

Ideal for inventory management, point-of-sale systems, and traceability in supply chains, our code scanners ensure smooth and error-free operations.

They are designed to handle even the most challenging conditions, such as low- light environments and damaged codes, making them indispensable tools for any business.

Robotics

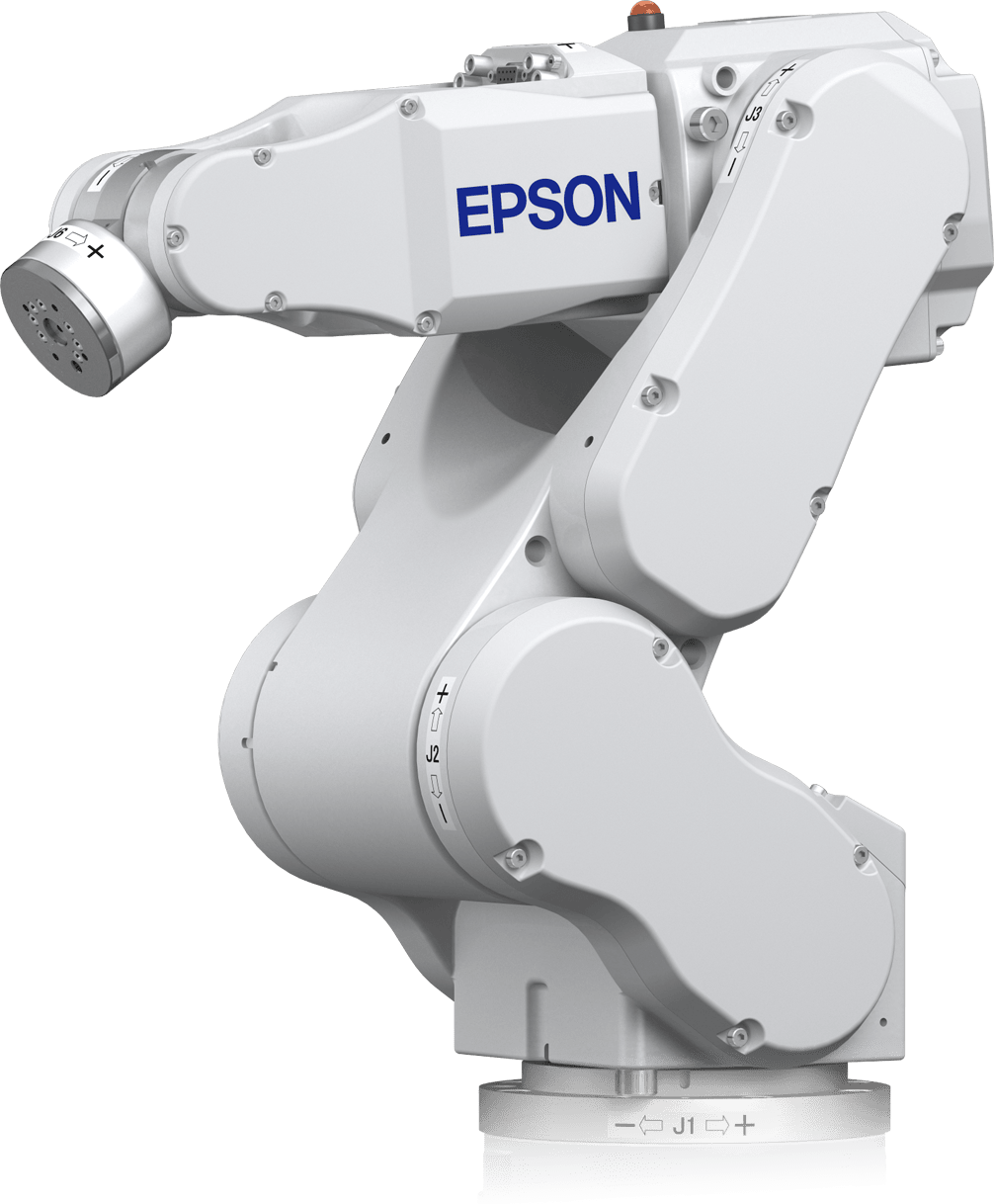

6-Axis Robots

Engineered for maximum flexibility and complex motion, ideal for welding, painting, inspection, and intricate handling, ensuring smooth and efficient operations in dynamic environments.

SCARA Robots

Ideal for high-speed, high-precision applications such as pick-and- place, assembly, and dispensing, offering fast cycle times and compact designs for seamless integration.

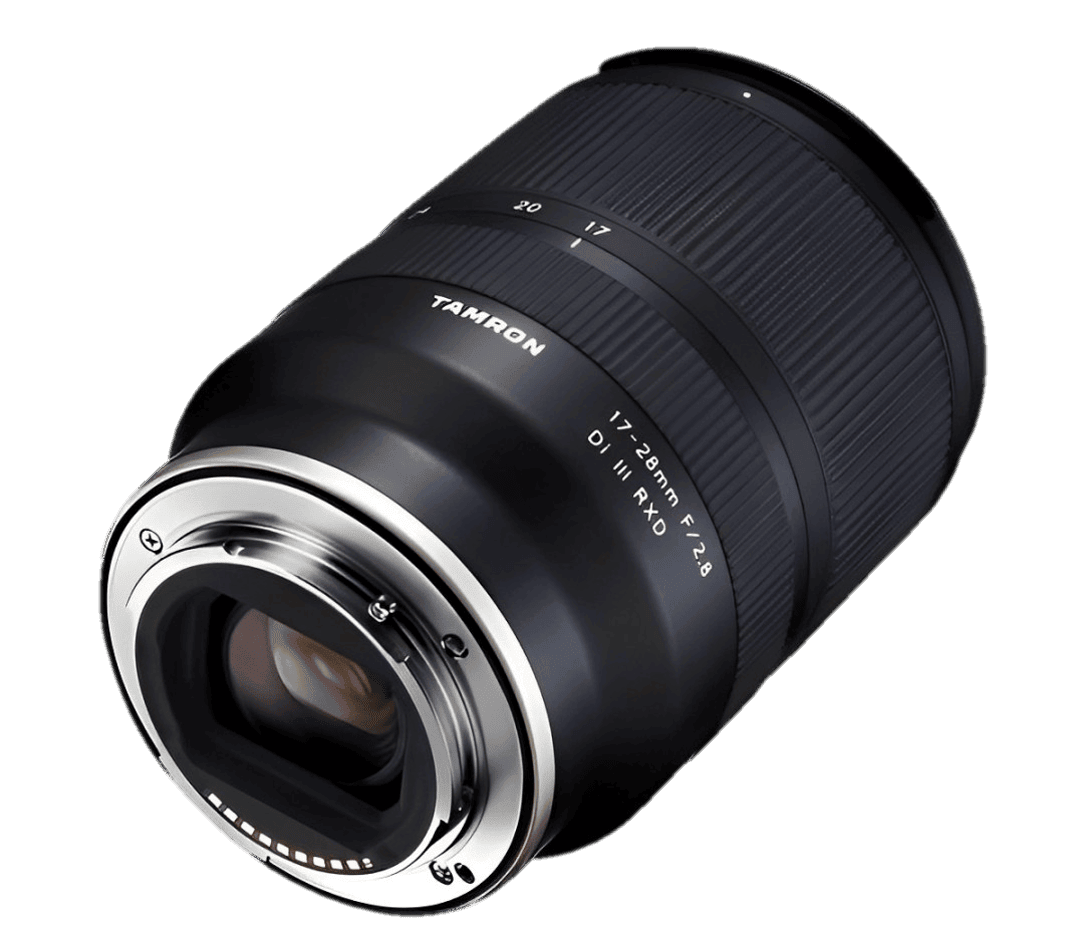

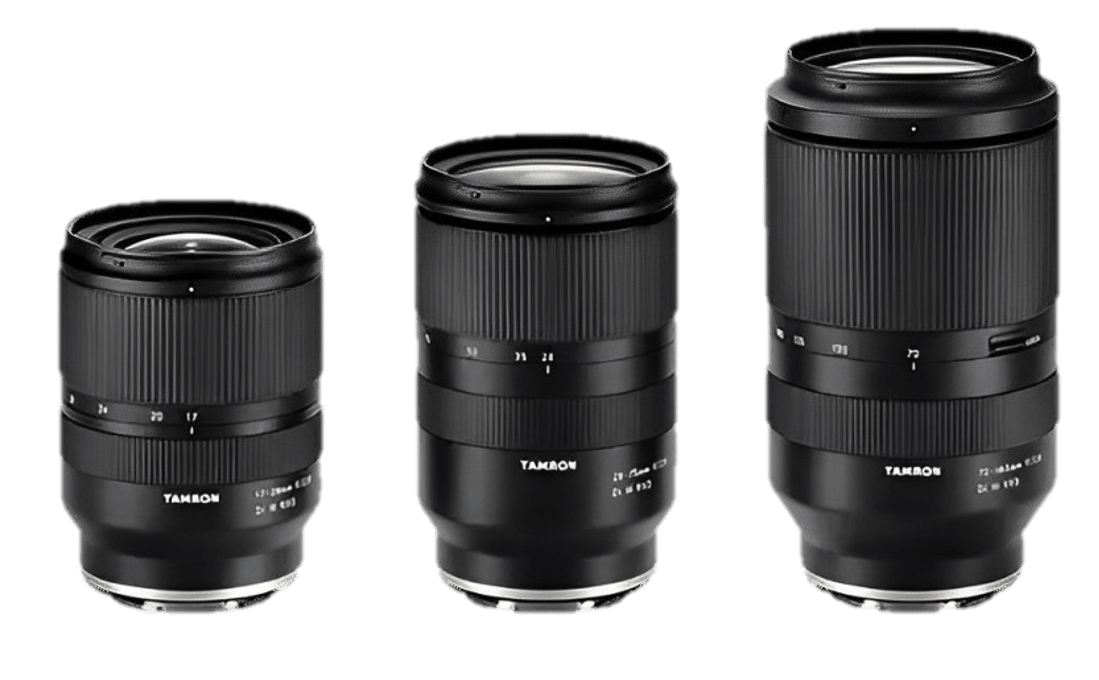

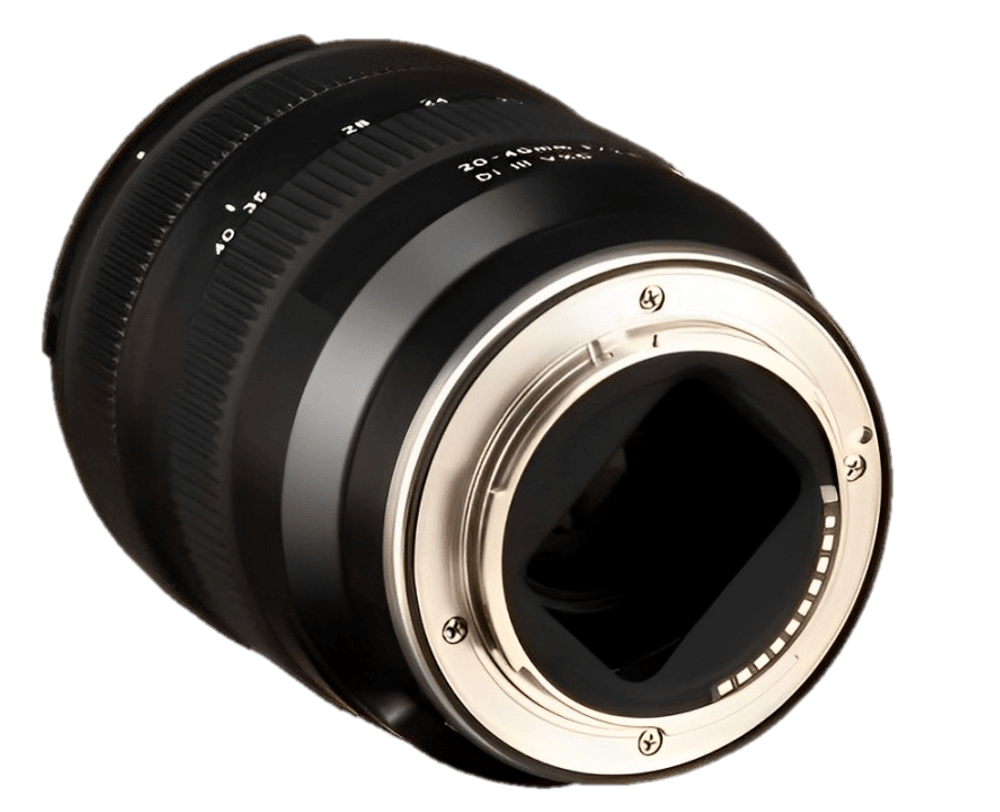

Industrial Lens

Great cost performance ratio Industry leading low distortion 6MP with 1/1.7” or 1/1.8” sensors Compact and uniform lens design Same Filter Size and Diameter High quality performance at close up distances

FEATURES
- Great cost performance ratio
- Industry leading low distortion
- 6MP with 1/1.7” or 1/1.8” sensors
- Compact and uniform lens design
- Same Filter Size and Diameter
- High quality performance at close up distances

Focal Length	Sensor Size	Aperture Range	Iris Type	Operating Temp
6mm	1/1.7”- 1/1.8”	F2.4-16	Manual with Lock	-20°C ~ +60°C
8mm	1/1.7”- 2/3”	F2.4-16
12mm	1/1.7”- 2/3”	F2.4-16
16mm	1/1.7”- 2/3”	F2.4-16
25mm	1/1.7”- 2/3”	F2.4-16
35mm	1/1.7”- 2/3”	F2.4-16
50mm	1/1.7”- 2/3”	F2.8-16

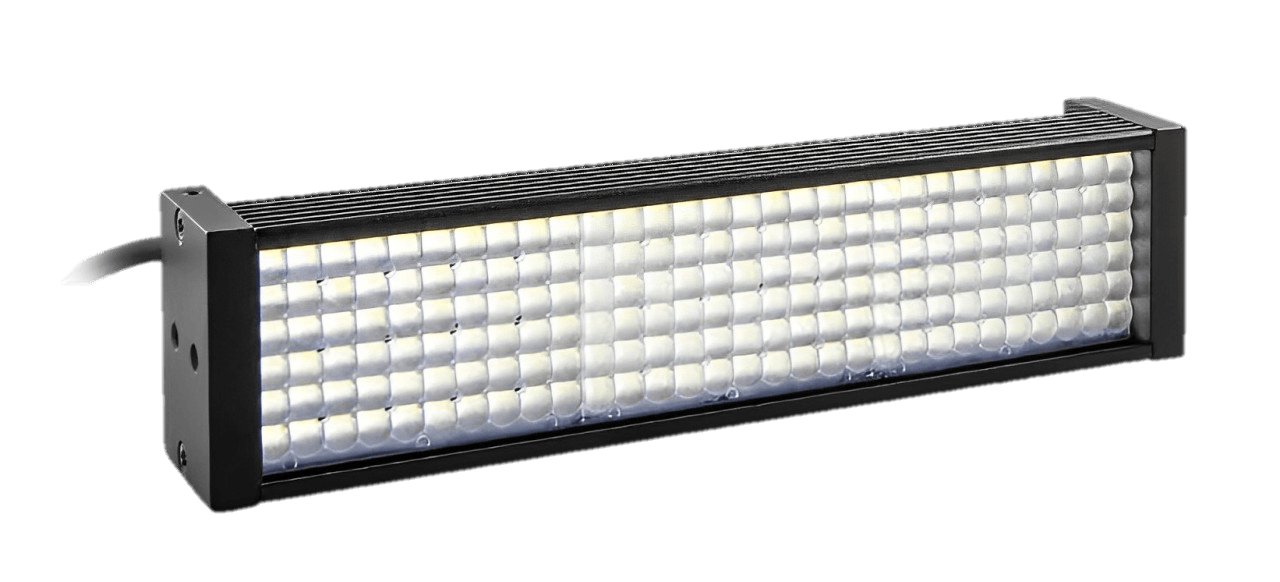

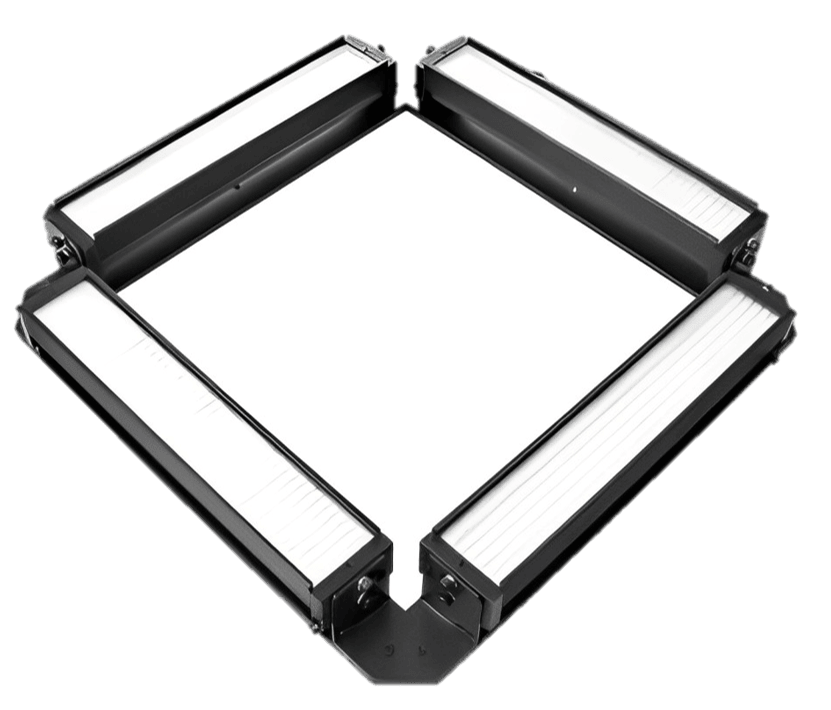

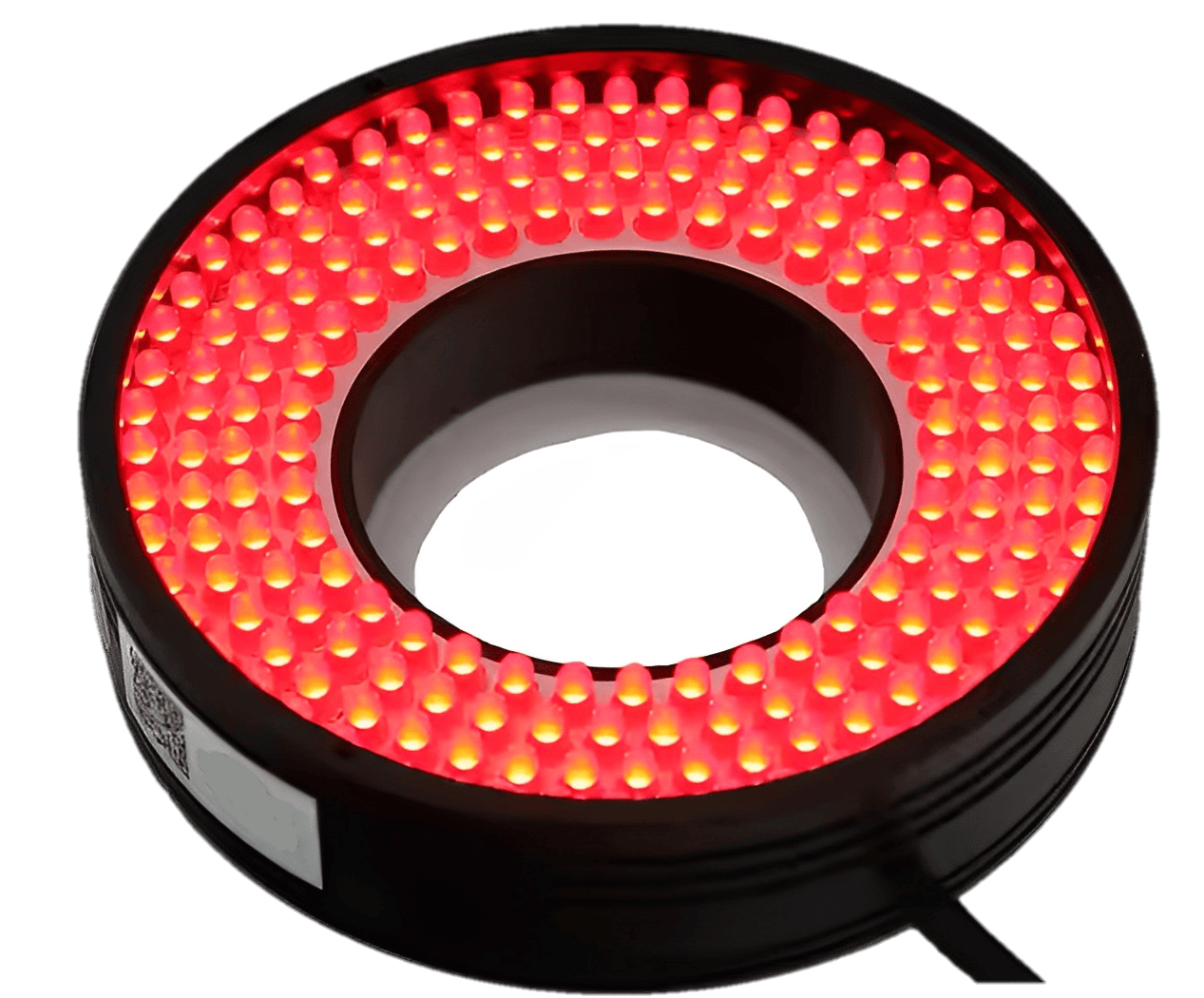

Lighting Module

Illuminate Precision with Industrial Lights

Enhance visibility, accuracy, and efficiency in your industrial applications with our high-performance Industrial Bar Lights and Ring Lights. Designed for machine vision, automation, inspection, and assembly processes, our lighting solutions ensure consistent, bright, and uniform illumination— eliminating shadows and glare for optimal precision.

Built for harsh industrial environments, our lights feature durable construction, energy-efficient LEDs, and customizable designs to fit various applications.

Type	Model	Size (mm)	Rows	Voltage	Diffusion
Bar Light	OVB-13-4-24-W	135 (L)	4	24	Normal/Diffused
	OVB-18-4-24-W	180 (L)	4	24
	OVB-22-4-24-W	225 (L)	4	24
	OVB-31-4-24-W	315 (L)	4	24
Ring Light	OVR-90-60-24-W	90 (Dia.)	1	24
	OVR-12-90-24-W	120 (Dia.)	2	24
	OVR-15-60-24-W	150 (Dia.)	2	24
Shadow-less	OVRL-116-24-W	116 (Dia.)	1	24	Diffused
Hi-Power Bar	OVBH-15-1-24-W	150 (L)	1-2	24	Diffused
Hi-Power Ring	OVRH-10-90-24-W	100 (Dia.)	1	24	Diffused
Back Light	OV-FL-100-24-W	100 x 100	-	24	Diffused
Back Light	OV-FL-100-24-W	150 x 150	-	24	Diffused

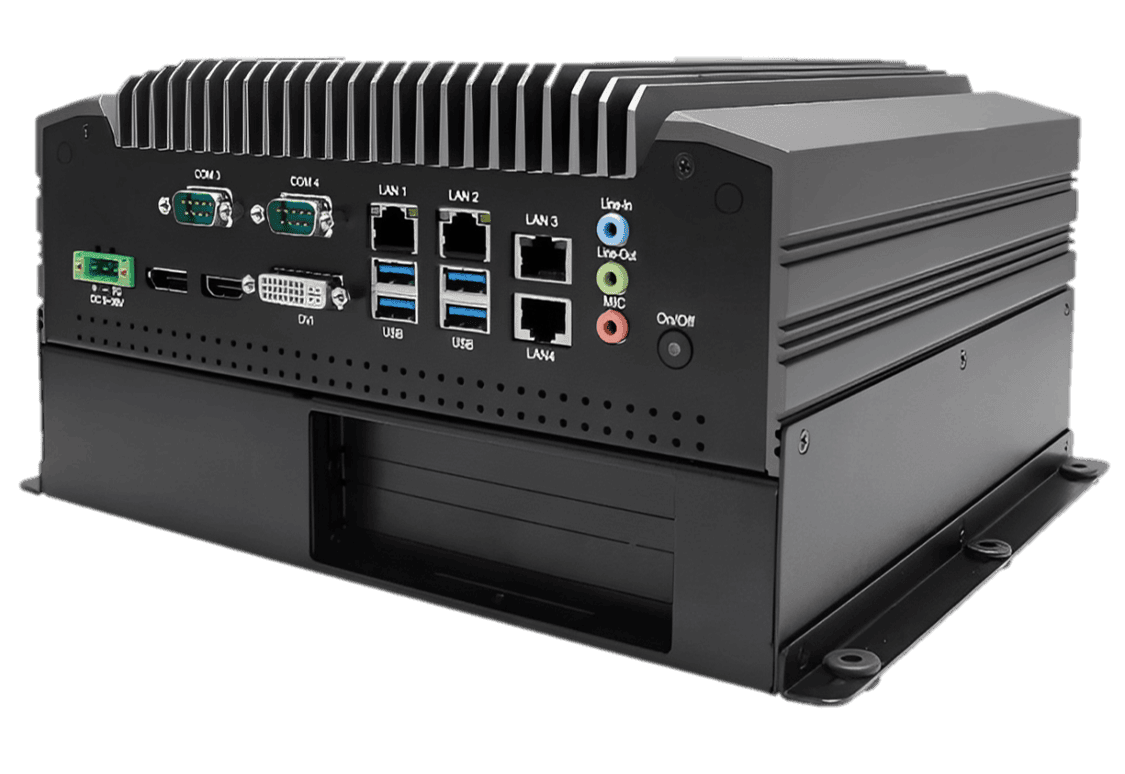

Industrial PCs

Available in rack-mounted, panel-mounted, and embedded systems, Our Industrial PCs, integrate seamlessly into any industrial setup. With high- performance processors, ample storage, and versatile connectivity, they handle complex tasks effortlessly. Whether controlling machinery, monitoring processes, or analyzing data.

CPU	Intel® i5/i7/i9,12th/13th/14th Gen Core™ i CPU
Communication Ports	2 x Giga LAN, 2 x USB 3.2 (Gen2) and 6 x USB 3.2 (Gen1); 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)
Memory	1 x 2.5" HDD/SSD, 1 x mSATA, and 1 x NVMe, Supports upto 32GB RAM, 2TB
Temperature	-20 ~ 60 °C
Power Supply	220VAC / 24VDC
OS	Supports Windows 10 / 11

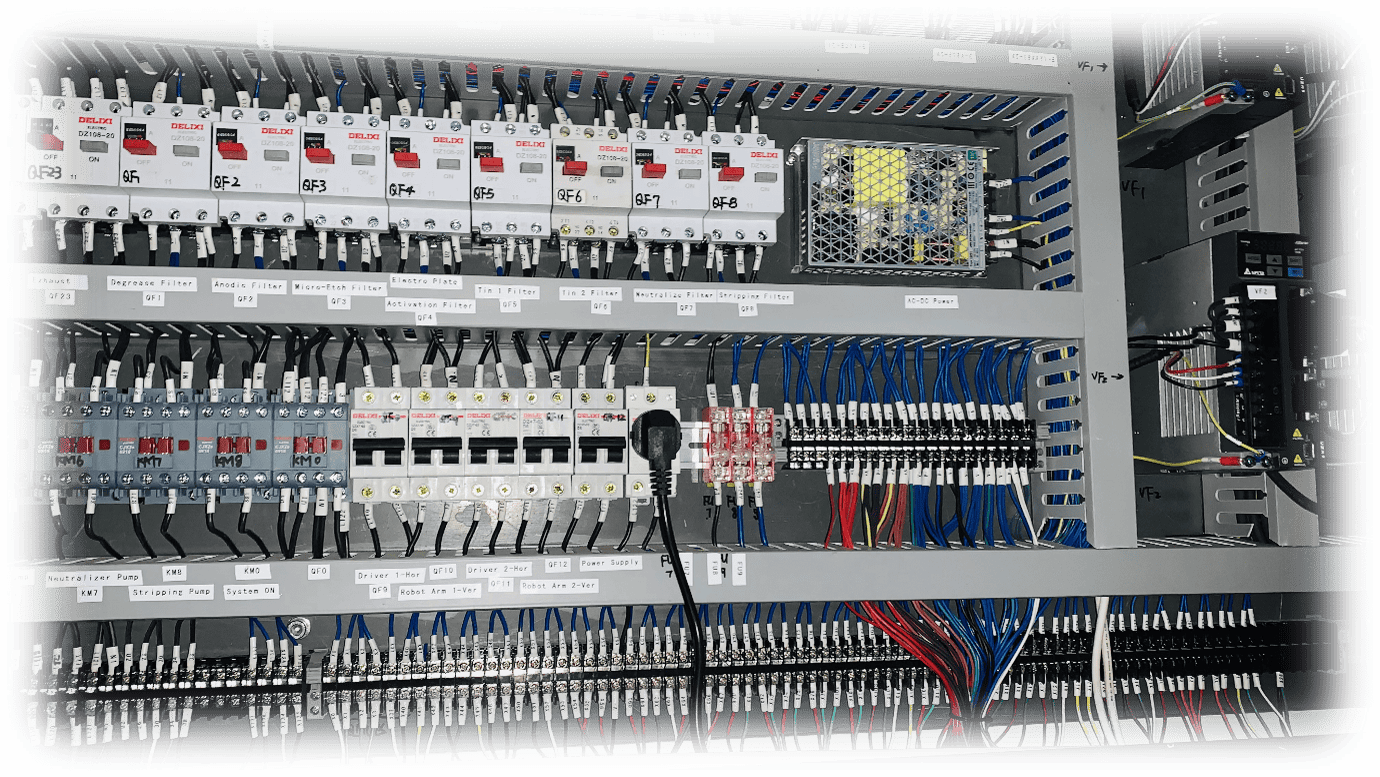

Panel Components

Our expertise in panel building ensures that we deliver high-quality, reliable, and customized solutions tailored to meet the unique needs of our clients. Whether it's for industrial automation, power distribution, or process control, our panels are designed to enhance efficiency, safety, and reliability in any electrical system.
