Machine Vision
Cutting-edge imaging technology powering the deepest layers of quality control. Precision optics, intelligent edge-processing, and extreme reliability built for dynamic industrial frameworks.

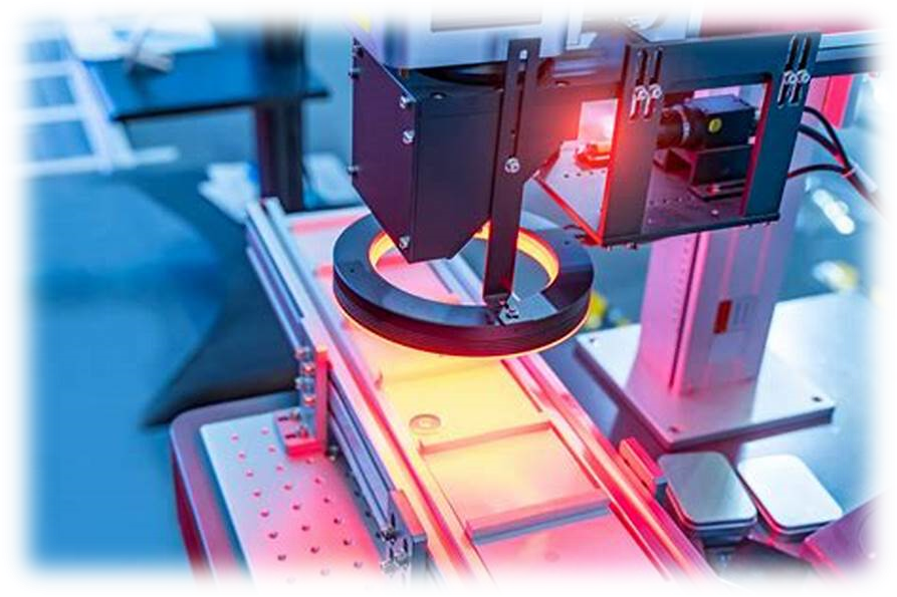

GigE Vision 2.0

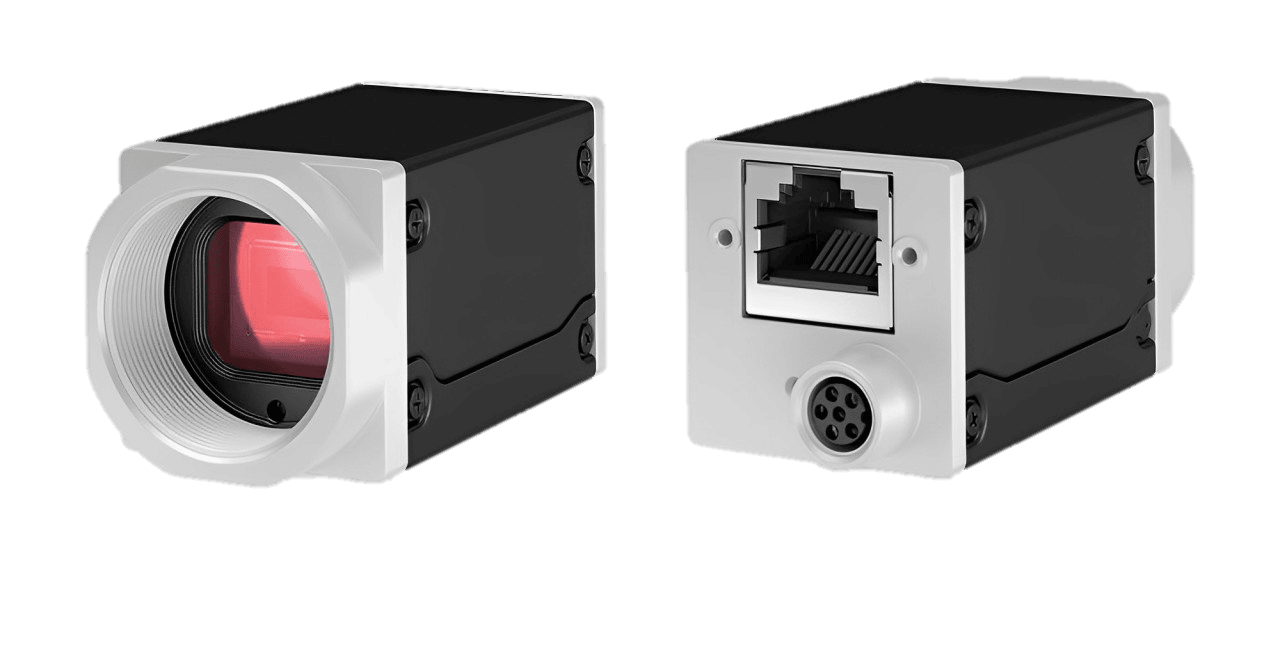

GigE Vision Cameras
High-speed industrial cameras engineered to process crystal-clear image data at extreme framerates. Featuring an immense 64MB cache architecture natively tied into trigger systems.
- Exposure & Baseline: Dynamic white balance and manual exposure locking.
- Trigger Hardware: Software UI and Physical External I/O trigger routing.
- Architecture: IP30 Rated, CE/KC/UL/RoHS Certified logic board.
- Environment: Operating bounds of 0~45°C.
IMX Sensor Matrix Core
| Model | Shutter | Res | Pixel | FPS |
|---|---|---|---|---|
| IMX287 | Global | 720x540 | 6.9μm | 290 |
| IMX273 | Global | 1440x1080 | 3.45μm | 75 |
| IMX265 | Global | 2048x1536 | 3.45μm | 36 |
| IMX264 | Global | 2448x2048 | 3.45μm | 23 |
| IMX335 | Rolling | 2592x1944 | 2.0μm | - |
| IMX178 | Rolling | 3072x2048 | 2.4μm | 16 |
| IMX226 | Rolling | 4000x3000 | 1.85μm | 8 |
| IMX183 | Rolling | 5472x3648 | 2.4μm | 5 |

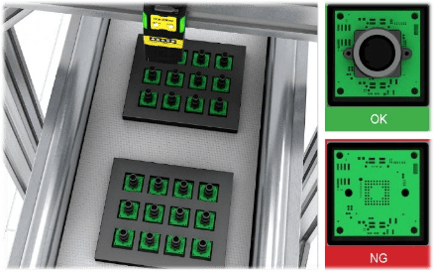

Integrated Compute

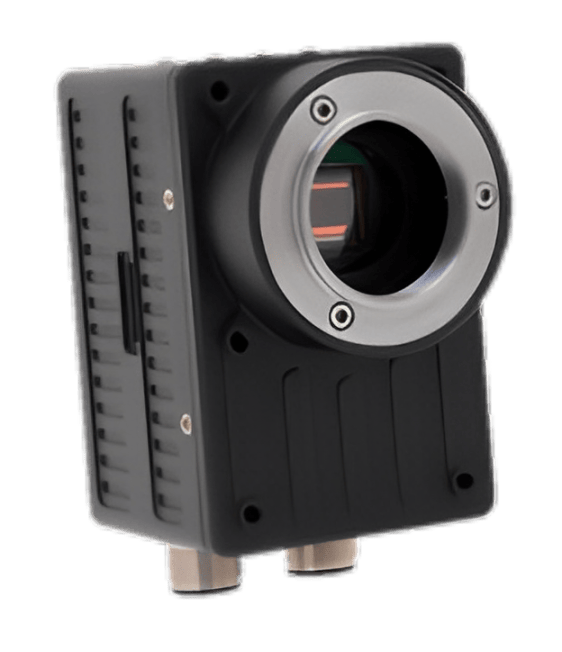

Smart Cameras
Fully independent vision processing engines. High-resolution sensors merged tightly with onboard logic platforms—eliminating the need for localized external computing towers.
Laser Precision
Code Readers
Built to rip through corrupted, poorly lit, or heavily damaged codes at lightning speed. Instantly parse 1D, 2D, and QR formats for ultimate logistics tracking.
