Optics & Illumination
Uncompromising low-distortion optics paired with deep uniform lighting modules. Engineered to capture microscopic defect thresholds in hyperspeed environments.
High Resolution Optics
Industrial Lenses
Zero-distortion 6MP architecture scaling precisely alongside 1/1.7" sensor arrays. Built directly into ruggedized locking barrels for CNC vibration resistance.
Focal Lens Matrix
| Length | Sensor Max | Aperture | Iris Type |
|---|---|---|---|
| 6mm | 1/1.7" | F2.4 - 16 | Manual Lock |
| 8mm | 1/1.7" | F2.4 - 16 | Manual Lock |
| 12mm | 1/1.7" | F2.4 - 16 | Manual Lock |
| 16mm | 1/1.7" | F2.4 - 16 | Manual Lock |
| 25mm | 1/1.7" | F2.4 - 16 | Manual Lock |
| 35mm | 1/1.7" | F2.4 - 16 | Manual Lock |
| 50mm | 1/1.7" | F2.8 - 16 | Manual Lock |
Uniform Phosphor Logic
Lighting Modules
From shadow-less concentric rings to extreme high-power diffuse bars, our 24V architecture guarantees zero-flicker imaging at 300+ FPS shutter speeds.
Lighting Dimensional Array
| Type | Size / Dia | Volt | Color/Beam |
|---|---|---|---|
| Bar Light | 135 - 315mm (L) | 24V | R-B-W (IR 850) |

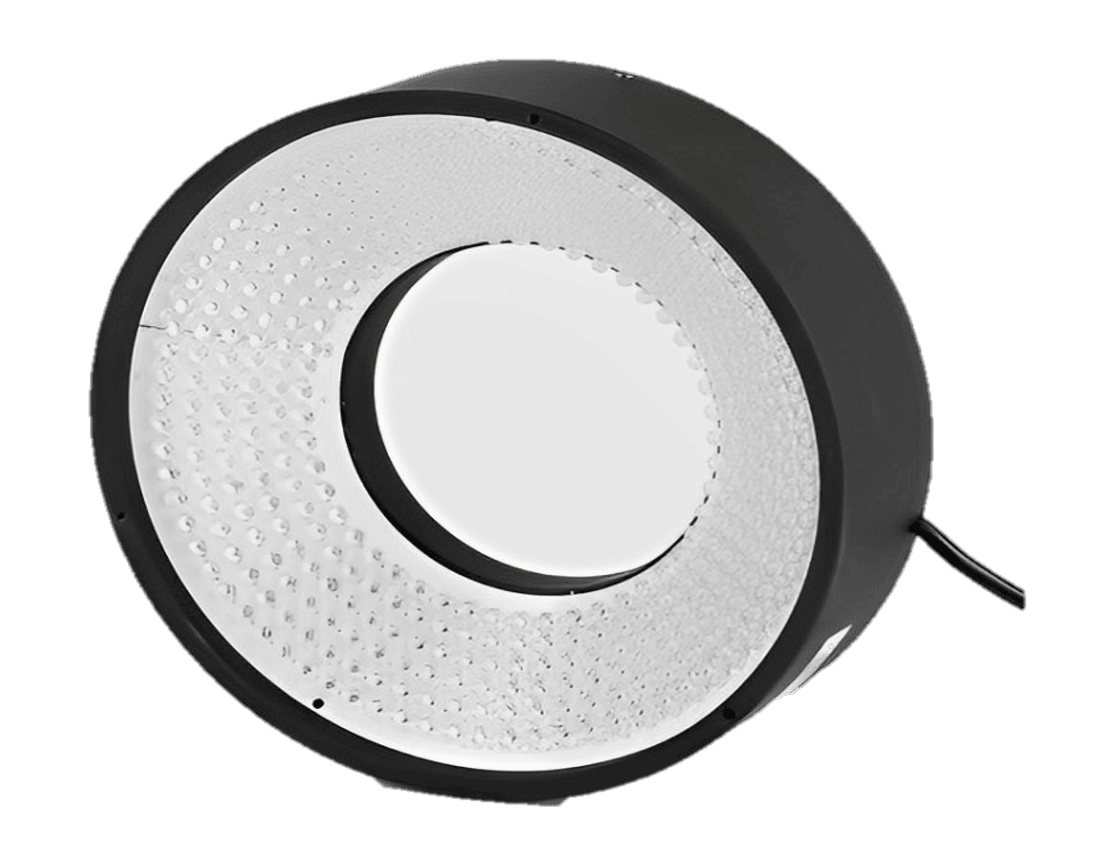

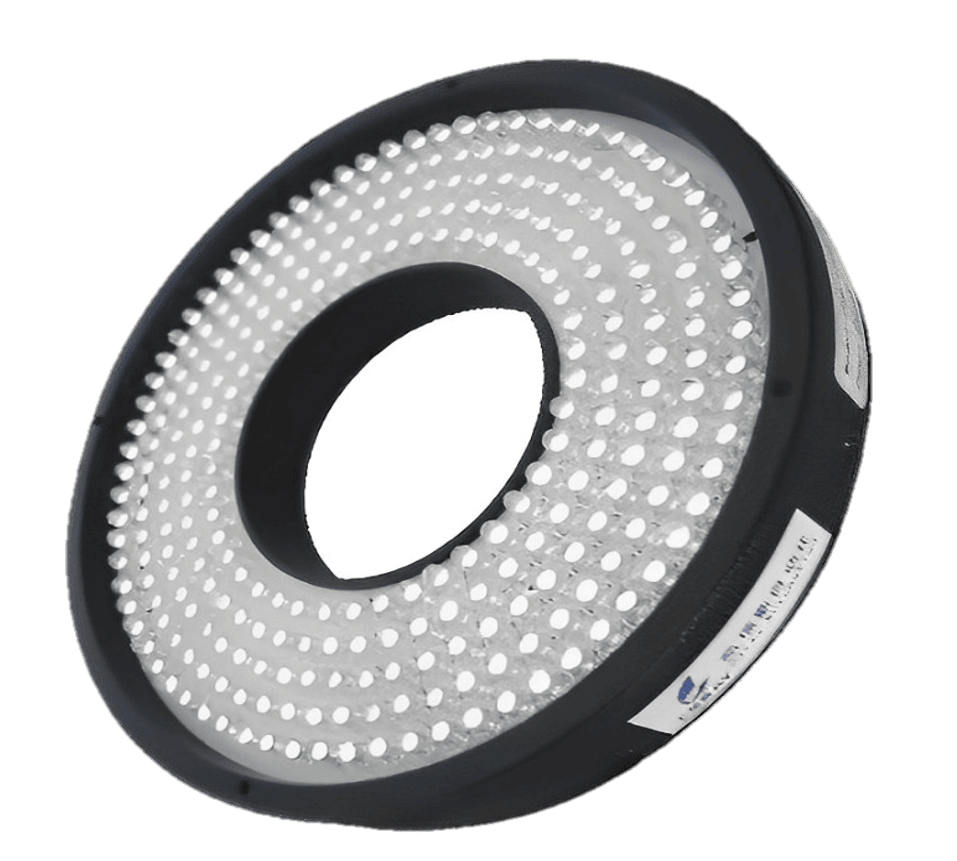

| Ring Light | 90 - 150mm (D) | 24V | R-W (UV 375) |
| Shadow-less | 116mm (D) | 24V | Diffused R-W |
| Hi-Power Bar | 150mm (L) | 24V | Diffused |
| Hi-Power Ring | 100mm (D) | 24V | Diffused |
| Back Light | 100x / 150x | 24V | Diffused R-W |
